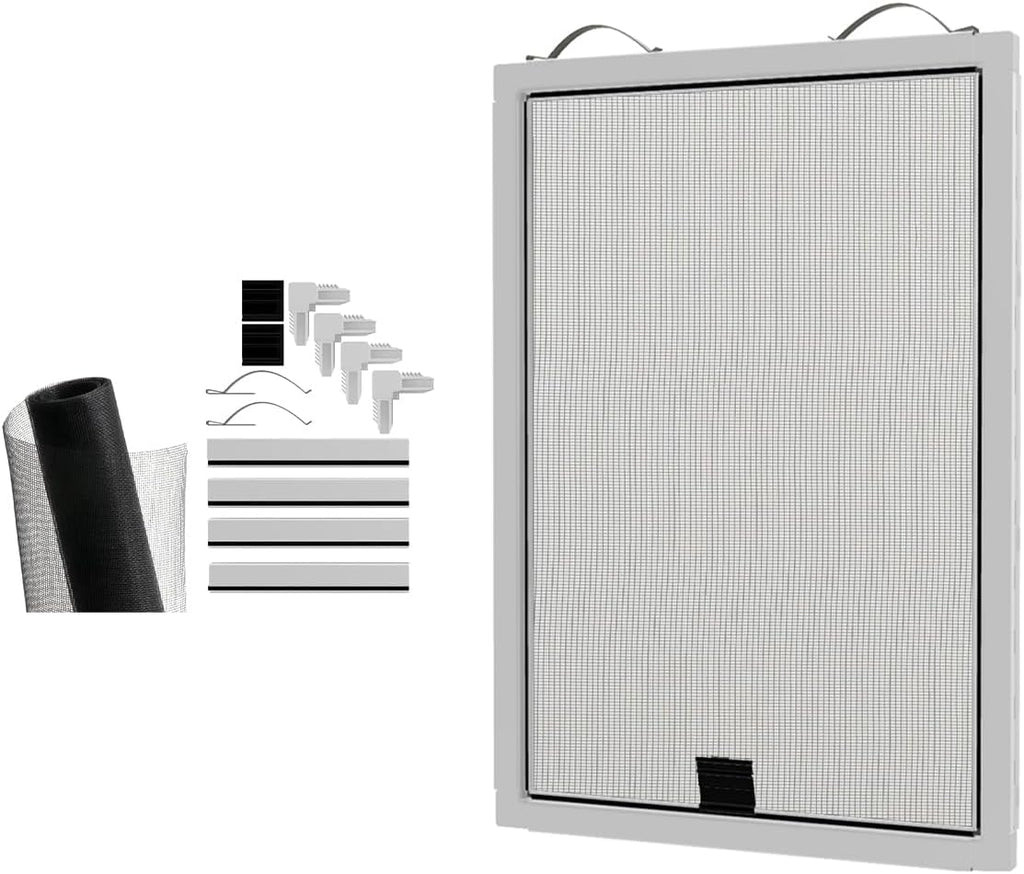

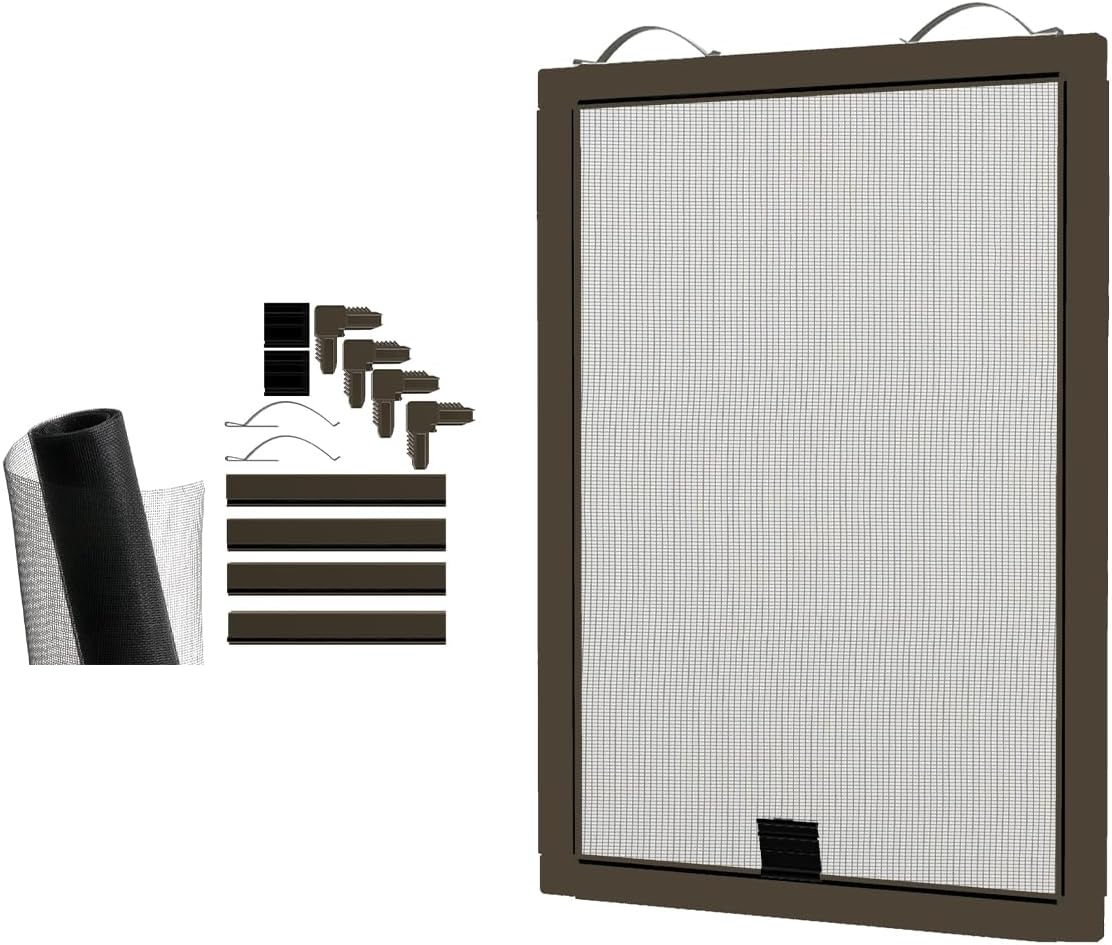

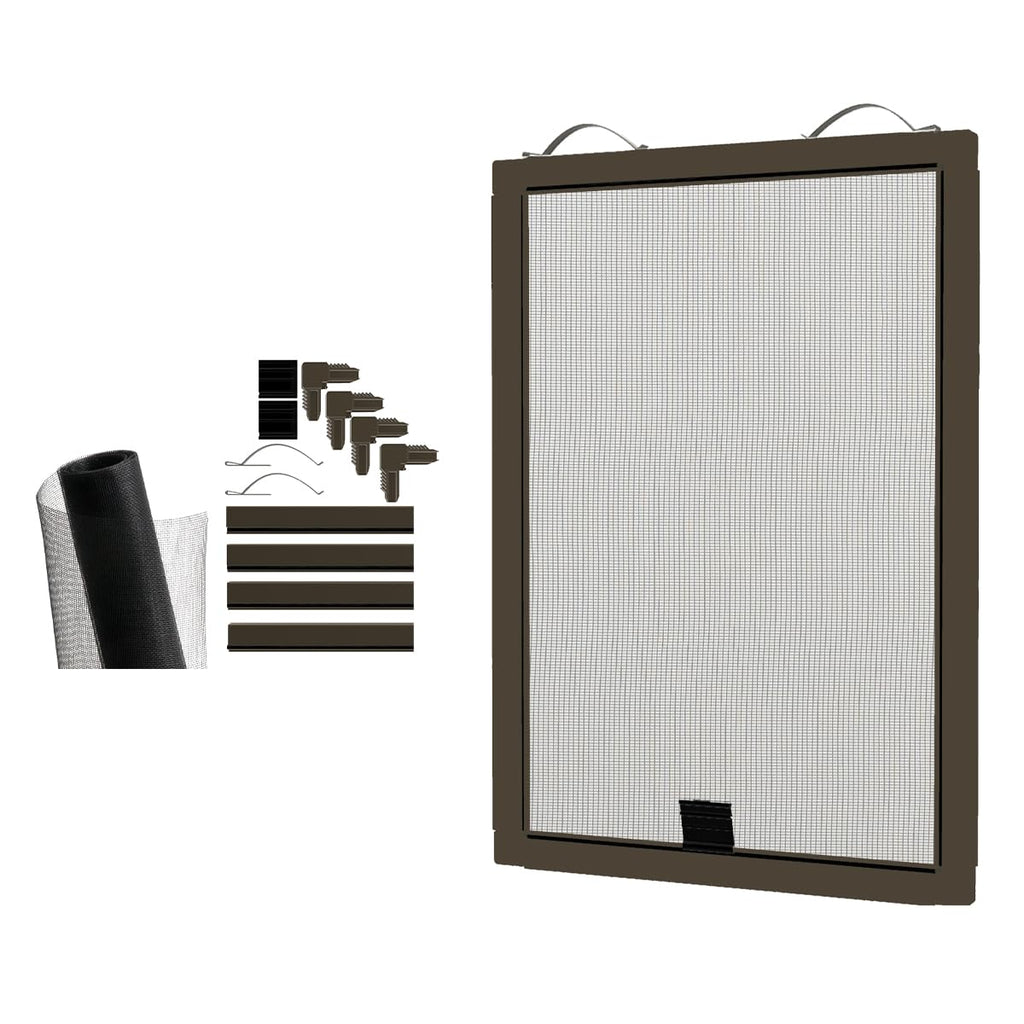

Window Screen Replacement Kit, 36", 48" and 60" Window Frames, White or Bronze, with Screen Mesh Roll. Easy Installation!

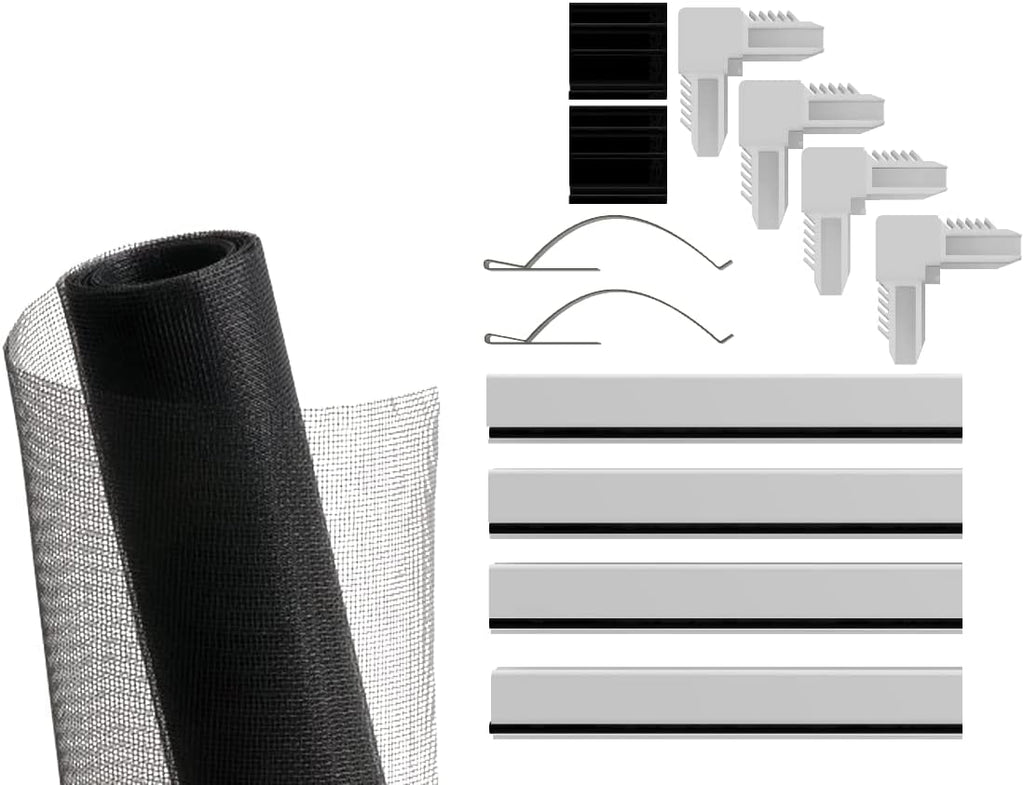

Foam Spline

INDUSTRY-LEADING FOAM SPLINE - Our foam spline is durable and easy to install. Whether you're building new screens for your windows or patios, or re-screening your existing ones, you can rely on the ease of use and dimensionality of foam spline.

Extruded Aluminum Lineal Frame

Our IN-HOUSE, MADE IN THE USA extruded aluminum frames are more sturdy and more durable than average steel frames, helping to mitigate damage during transit and adding shelf life to your frame once installed.

Matching Corners

COLOR MATCHING, straight cut corners for easy insertion and holding power.

Char Fiberglass Mesh Roll

• Helps prevent dirt, soot, and other undesirable air pollutants outside the home, and clean air inside.
• Setting the Standard for Quality
• Protection from Pesky Insects
• Increased Visibility for Windows, Patio Doors, & Porches

Measuring Windows for Cutting Frames

• Measure existing screen if applicable
• Measure width and height to fit against the blind stop and sill.
• Then deduct 1 ½” from width and height to allow for corner inserts.

Cutting and Assembly of Frames

• Use square or square item (such as a book) to mark pieces for straight line cutting.
• Carefully cut with a hacksaw (not provided) along marked line.

Assembling Frame Pieces

• Insert corners into frames
• Ensure the spline groove side of the frame is facing you
• First, insert corners in longer sections
• Then, attach longer sections to
• the shorter pieces.

Applying Screen Cloth to Assembled Frame

• Place assembled frame with spline grooves up. Center screen cloth over frame.
• Cut screen cloth to overlap all four (4) sides of frame by at least one inch.
• Start at corner and using a spline roller tool, roll spline into spline groove. Force the screen cloth into the groove. Work around frame ending where you started. Cut off excess spline.
• Trim off excess screen cloth with a sharp utility knife
